Severe isolation duty
Compare six KEHUA plug valve series: lubricated, sleeve-type, lift, three-way, multi-way and jacketed. Review selection data and request a model-specific quote.
API 599 / API 6D
Compare six KEHUA plug valve series: lubricated, sleeve-type, lift, three-way, multi-way and jacketed. Review selection data and request a model-specific quote.
TECHNICAL SELECTION
Use the sample catalogue figures as a starting point, not a universal rating. Confirm the exact model, size, pressure class, material, end connection and operating conditions on an approved datasheet before ordering.
Describe the fluid, concentration, solids, corrosion risk and whether it is a gas, liquid or steam. Material and seat compatibility need review.
State NPS / DN, required bore, face-to-face length and installation envelope; request the model drawing.
Give the ASME Class or PN, plus operating and design pressure and temperature. A class alone is not a duty check.
Specify the mating flange facing or weld/thread details and piping standard; confirm the offered ends on the drawing.
This page does not yet include a model-specific catalogue specification table for this valve family. Treat the family overview range as indicative only; request the proposed model's datasheet before selecting size, pressure class or end connections.
Send operating data for reviewSELECTION ANSWER
Start with the required flow path, then compare the sealing and operating construction and any jacket requirement. Review the six KEHUA series against the fluid, operating sequence and installation; confirm the exact offered model's size-rating combination, materials and connections before ordering.
Compare plug valve series
Use the existing construction names to identify what needs review, then open the relevant series page for its procurement checks. This is a selection comparison, not a table of model-specific pressure, size or temperature ratings.
On a small screen, scroll the comparison table horizontally to read all columns.
| Series | Listed construction | Confirm before a model-specific quotation |
|---|---|---|
| Lubricated plug valve | Lubricated | Medium and service conditions; proposed lubricant and maintenance or injection access. |

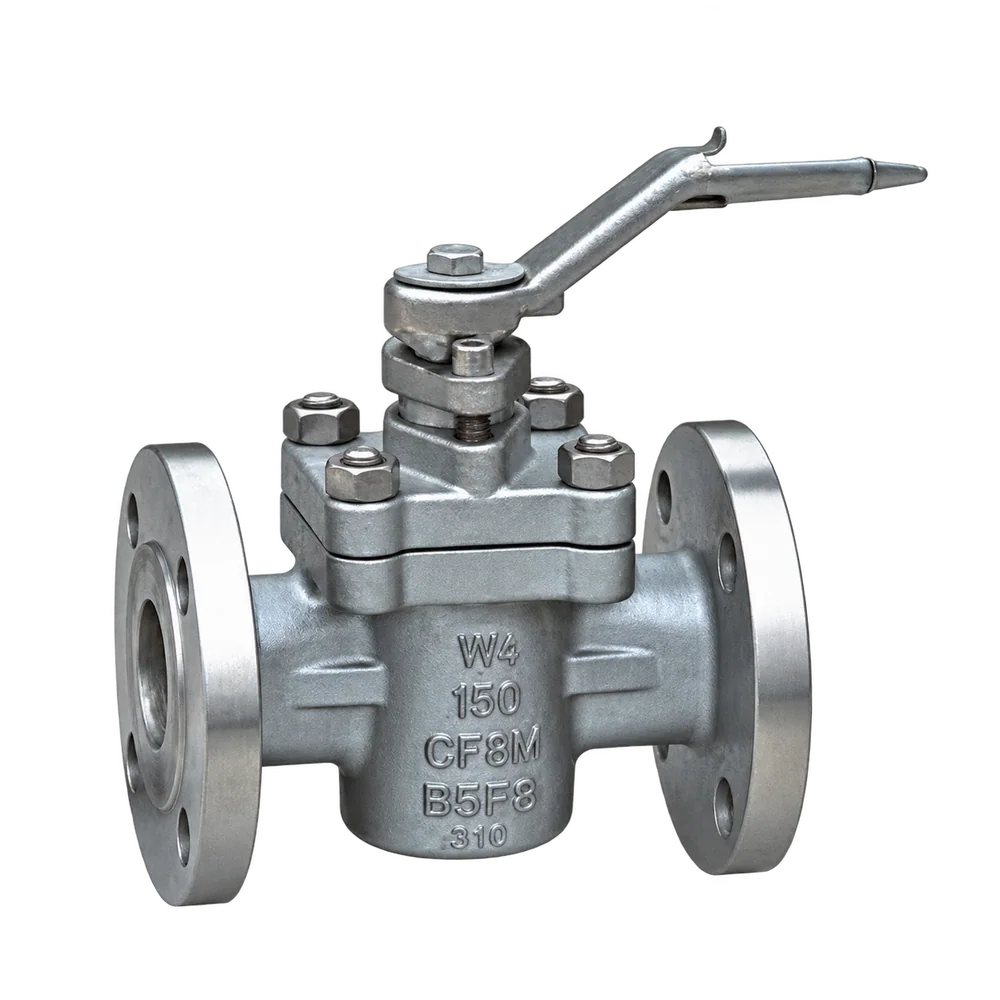

| Sleeve-type plug valve | Sleeve lined | Exact sleeve material, fluid composition and permitted service conditions; body and seal compatibility. |
| Lift plug valve | Lift type | Offered lifting/turning arrangement, differential pressure, operation data and installation clearance. |
| Three-way plug valve | Three way | Labelled port diagram, required flow positions, shutoff directions and switching requirements. |
| Multi-way plug valve | Multi-way | Required port count and position table; permitted routes, isolation and control requirements. |
| Jacketed plug valve | Jacketed | Process and jacket media, pressures, temperatures and connections specified separately. |
The existing family range is an overview, not proof of every offered size-rating or material combination. No model-specific specification table is available here for these six series; confirm missing ratings, dimensions, materials and ends on the proposed datasheet and drawing.
Treat lubrication, the sleeve and the operating mechanism as separate review points. Identify the fluid and duty, then request the proposed sealing materials, maintenance needs and operating data; a construction label does not establish chemical compatibility or a numerical actuator requirement.
Specify which labelled ports must communicate in every operating position and which routes must remain isolated. The name alone does not confirm port count, passage geometry, an all-closed position or behaviour during switching; obtain the offered porting diagram and position table.
Include the jacketed series when the enquiry specifies a jacket service around the process valve. Provide process-side and jacket-side conditions separately, and request the offered jacket layout and limits; do not assume a heating medium, common pressure rating or a particular port arrangement.
Before comparing quotations, review PN and ASME Class requirements and prepare a complete industrial valve RFQ. Unknown conditions stay pending for technical review.
Severe isolation duty
Use the plug valve page when the duty calls for compact quarter-turn isolation with project-specific sealing and port arrangements.

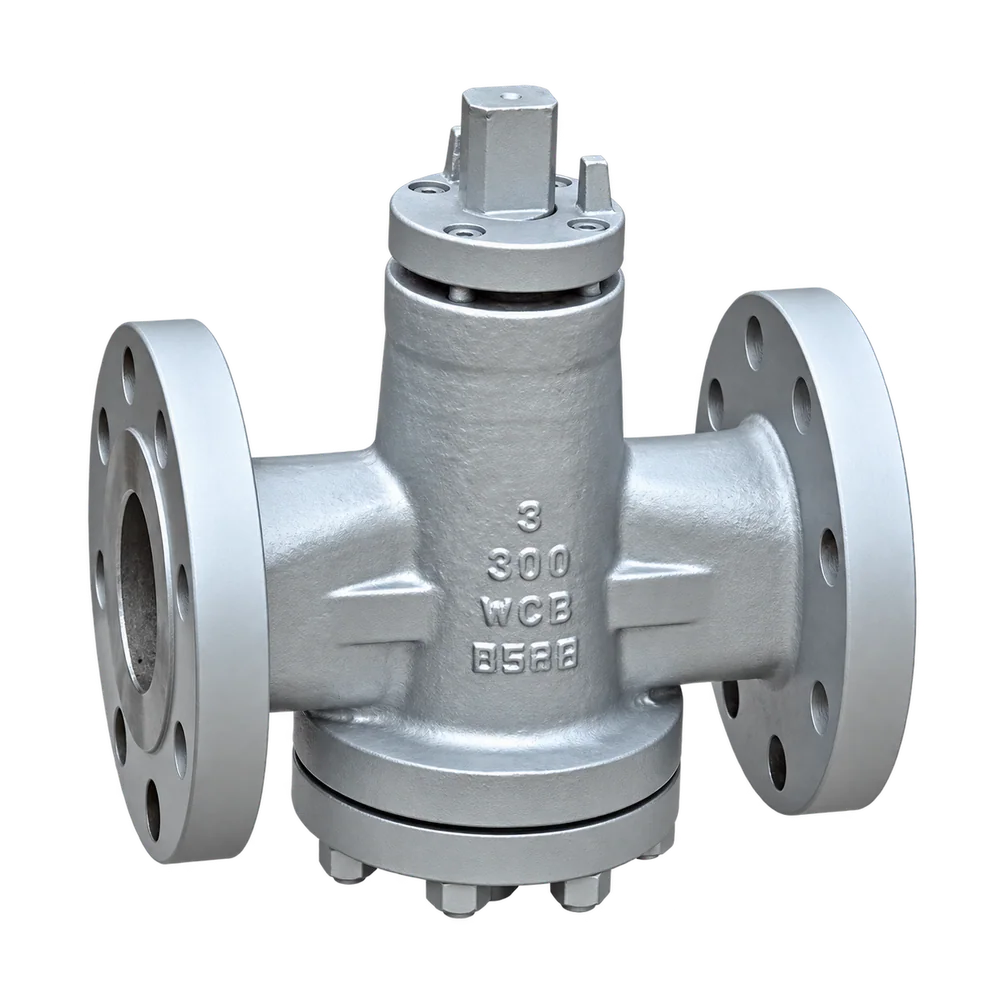

For a lubricated design, specify the medium and service conditions, then confirm lubricant compatibility and maintenance access on the offered model.
Lubricated
Request this series
For sleeve-lined construction, request the exact sleeve material and review it with the fluid composition, temperature, body and seal requirements.
Sleeve lined
Request this series

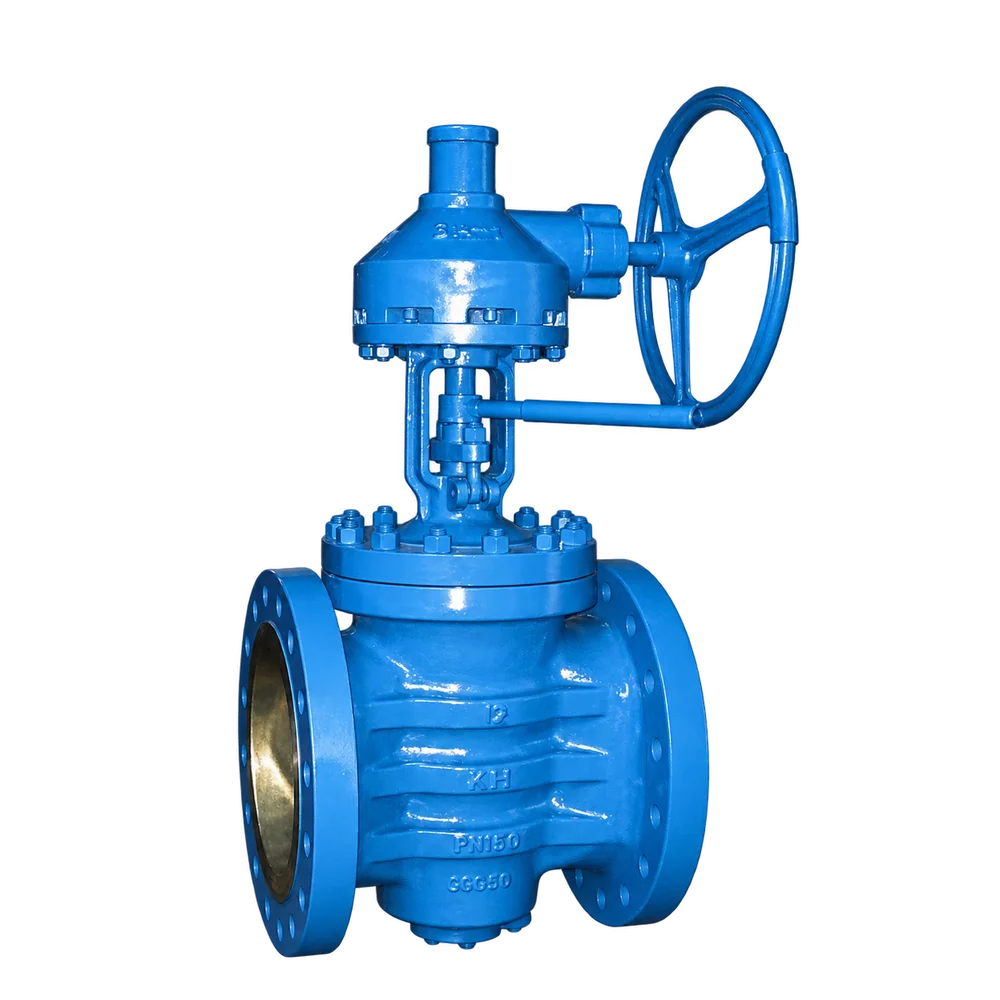

For a lift-type design, confirm the operating sequence, differential pressure and model-specific actuation data rather than inferring torque from the family name.
Lift type
Request this series

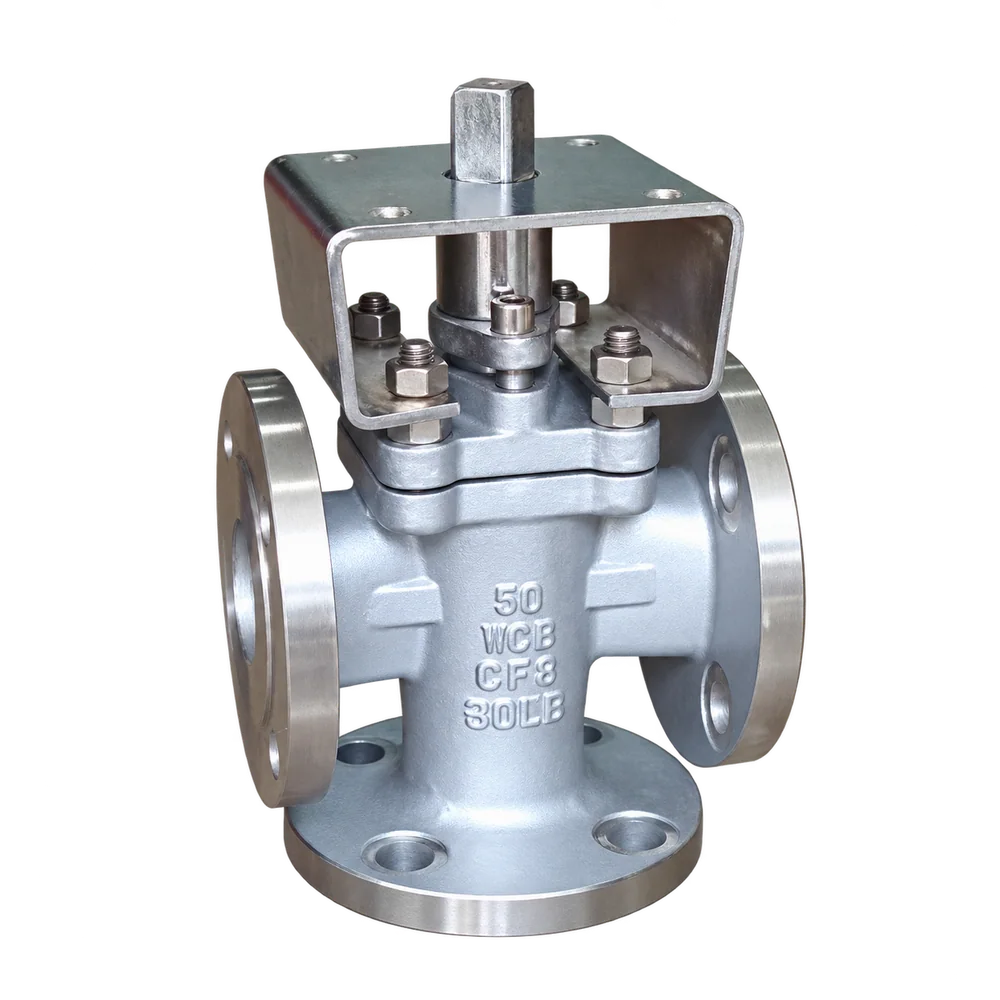

For three-way flow diversion, send a labelled port diagram and the connections required in each operating position before approving the offered arrangement.
Three way
Request this series

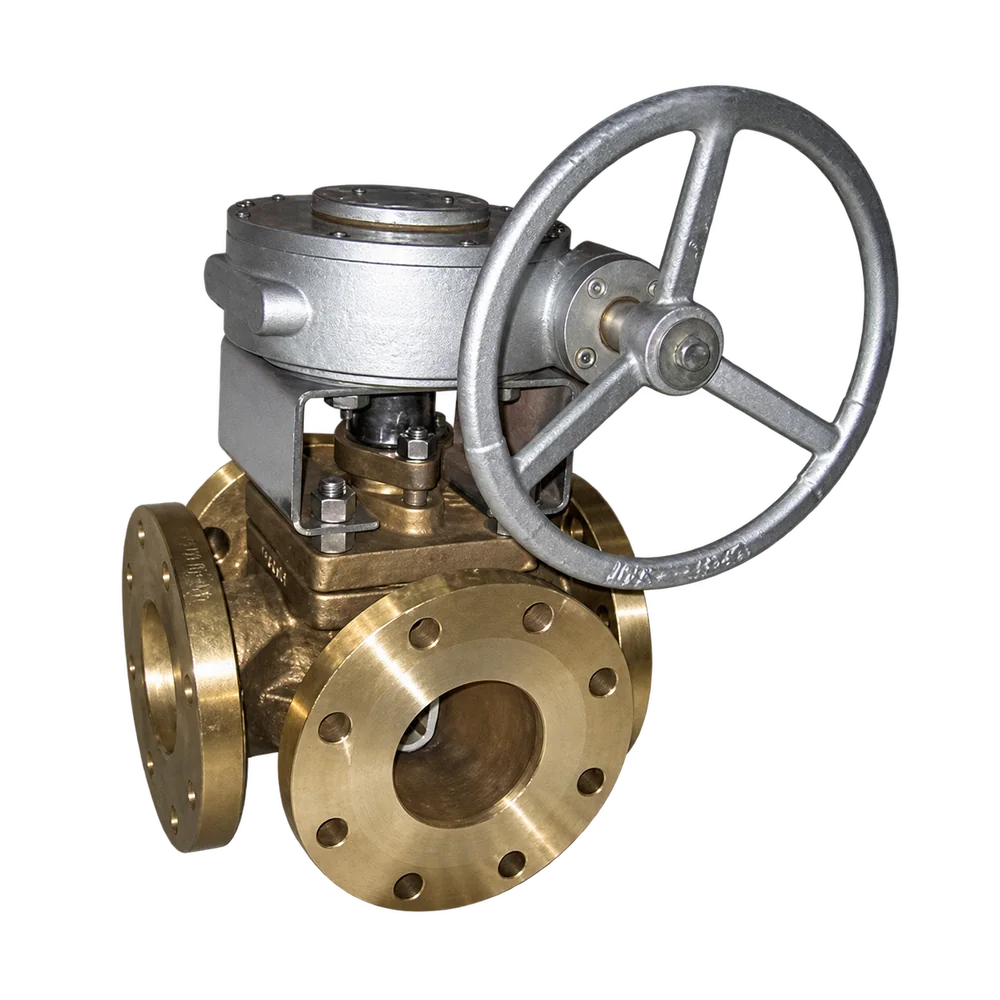

For multi-way process routing, define the ports, permitted flow paths and switching positions; obtain the offered routing drawing before quotation approval.
Multi-way
Request this series

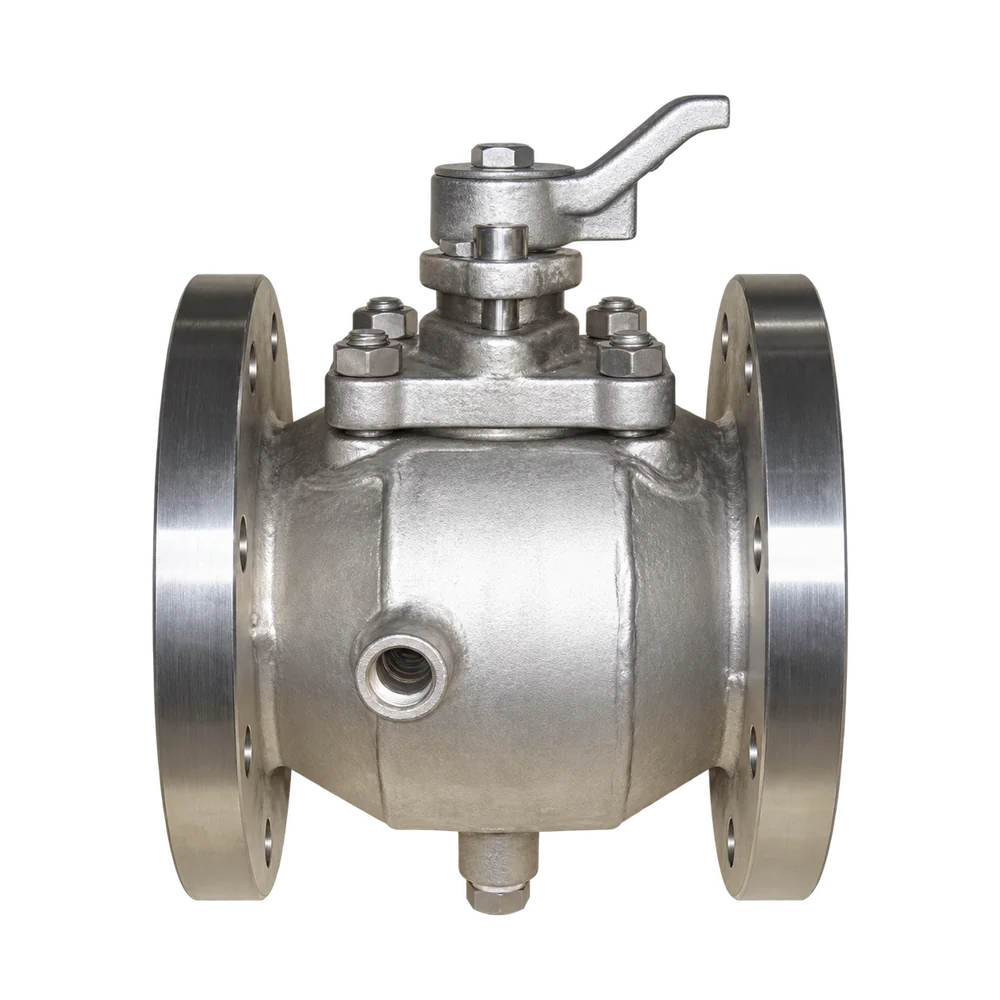

For a jacketed design, specify the process fluid and jacket service separately, then confirm the jacket limits, coverage and connections on the model drawing.
Jacketed
Request this seriesTechnical data
Bring media, size, pressure, temperature, material and quantity into the RFQ so the engineering team can review fit.
